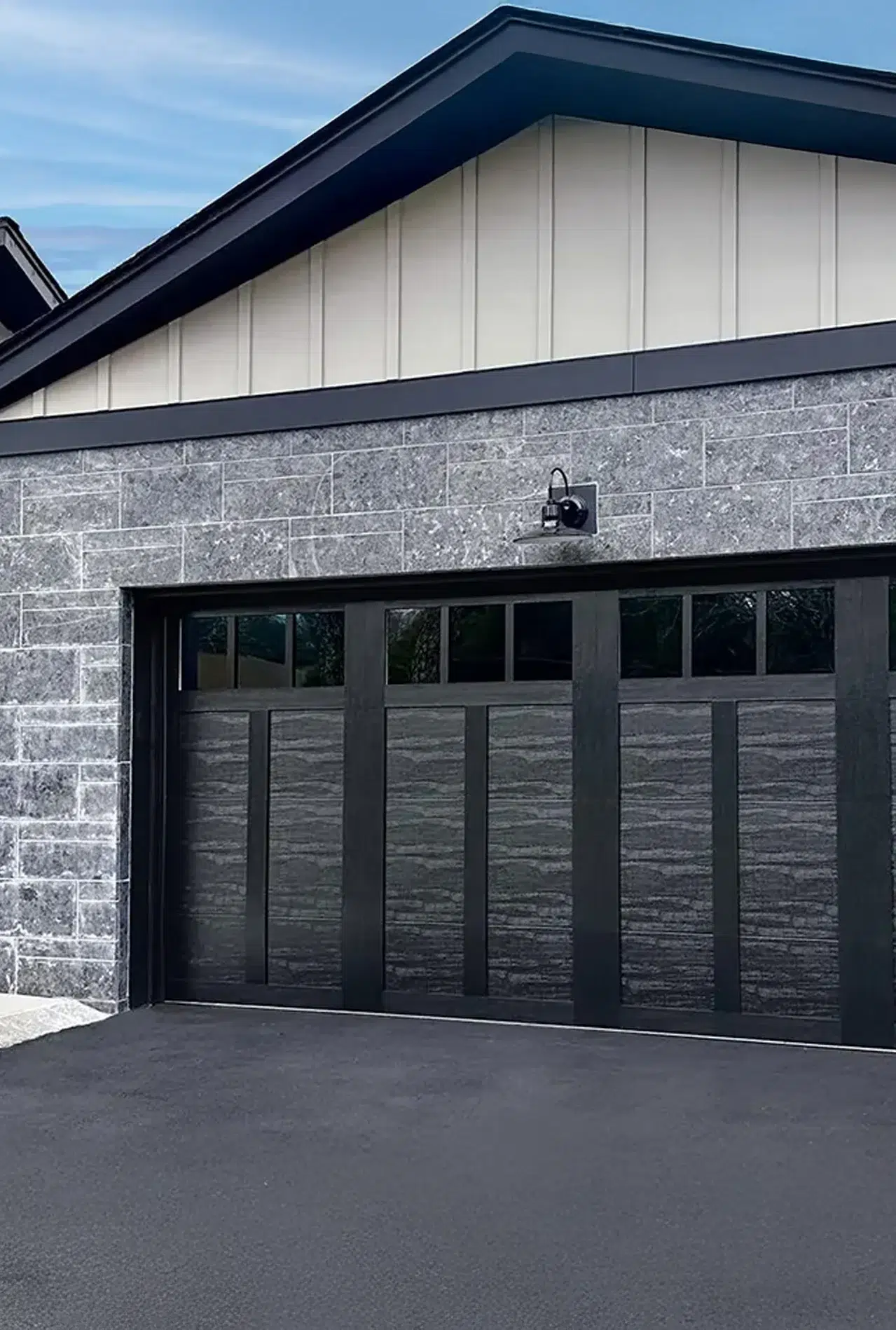

Canyon Ridge® Elements

A modern update to our traditional carriage house door, Canyon Ridge Elements pairs textured overlays with clean, square edges and durable insulated steel to give you the look of painted wood without the upkeep.+

Overview

Steel + insulation + steel + composite overlay

Overlay boards molded from woodgrain textured steel to match base door

Thirteen designs with optional windows and decorative hardware available in 7 standard paint colors. Color Blast® custom paint colors also offered in 1,500 shades.

1-3/8” polystyrene insulation with a 6.5 R value

WindCode® door reinforcement product available for high wind load applications.

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Design Options

Start designing your Canyon Ridge Carriage House (4-Layer) door.

Choose a Door Design + Solid Top or Windows + Composite “Species” + Paint or Stain Color + Hardware

Use our Door Imagination System to see your door on a photo of your home.

DOOR DESIGNS

Series 1

Series 2

Series 3

Top Sections

Series 1 & 2 Solid

Series 1 & 2 Window Designs

Double Top Sections

Specialty Glass Options

Colors

Hardware

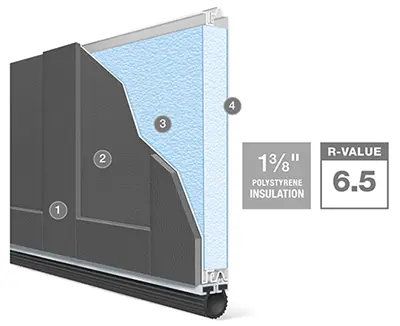

Construction

Canyon Ridge® Elements garage doors are built with a strong steel base door topped with low-maintenance, moisture-resistant composite overlays that won’t rot, warp or crack.

Composite Overlay
Steel
Polystyrene Insulation
Steel

Additional Features

Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Window grilles are removable for easy cleaning.
