Canyon Ridge Modern

CANYON RYDGE PRODUCT Garage Door Installations Experts USA

Canyon Ridge Modern

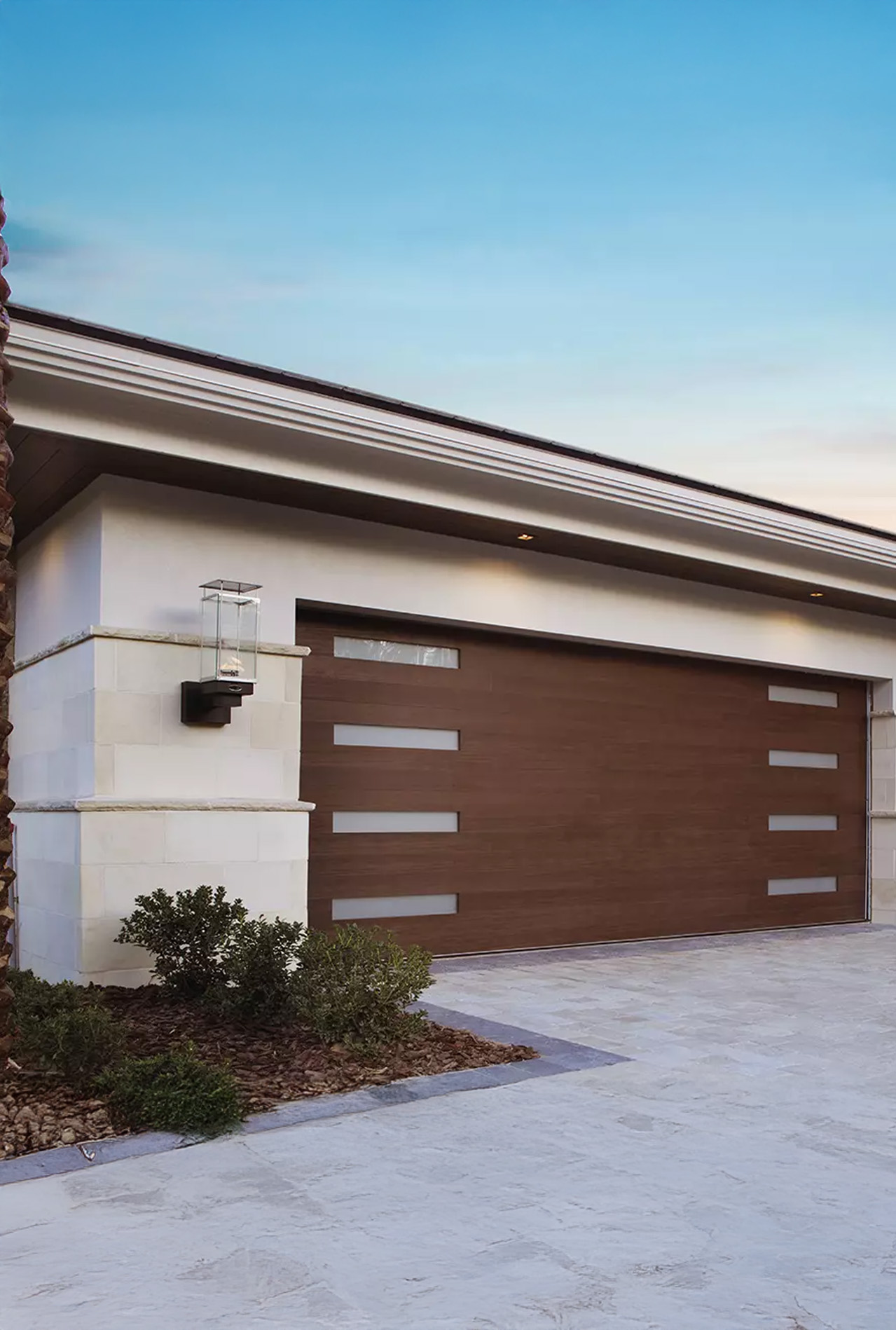

Statement-making and sophisticated, our Canyon Ridge Modern faux wood garage doors combine realistic wood textures with key elements of contemporary architecture: clean, horizontal lines with mid-century appeal, slim windows and metallic accents.

Overview

Steel + insulation + steel + composite cladding

Faux wood composite cladding and overlay materials are molded from real wood pieces to reproduce the natural texture and grain patterns of the species they emulate. Choose from Clear Cypress or Mahogany in a variety of paint and stain colors to create your own style.

Eight door designs with optional windows or metal accent pieces. Available primed, painted or stained in 8 standard finishes. Color Blast® custom paint colors also offered in 1,500 shades.

2″ Intellicore® polyurethane foam insulation with a thermal break. R-values range from 6.3 – 20.4 depending on the design.

WindCode^® door reinforcement product available for high wind load applications.

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Design Options

Customize your Clopay^® Canyon Ridge Modern garage door with your preferred design, color, hardware and glazing options. Choose from horizontal plank designs, aluminum inlays, and full-view glass options. If you are in search of more color options, our Color Blast® program allows you to select from hundreds of Sherwin-Williams^® color options or mix the perfect custom color.

DOOR DESIGNS

Plank Design 6"

Metal (Aluminum) Inlay Designs

Full View Designs

Specialty Glass Options

Available on Plank and Full-View Design Options only.
Note: Impact rated windows available only in clear.

Material Options

Plank Cladding

Metal (Aluminum) Inlay Cladding

Full-View Overlay

Colors

Hardware

Handles

Plates

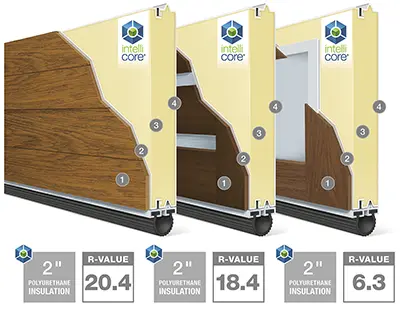

Construction

Canyon Ridge Modern garage doors are built with a strong steel base door topped with low-maintenance, moisture-resistant composite overlays that won’t rot, warp or crack.

Cladding or Overlay (Full-View)
Steel
2″ Intellicore® Polyurethane Insulation
Steel

Intellicore^®Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Window grilles are removable for easy cleaning.
